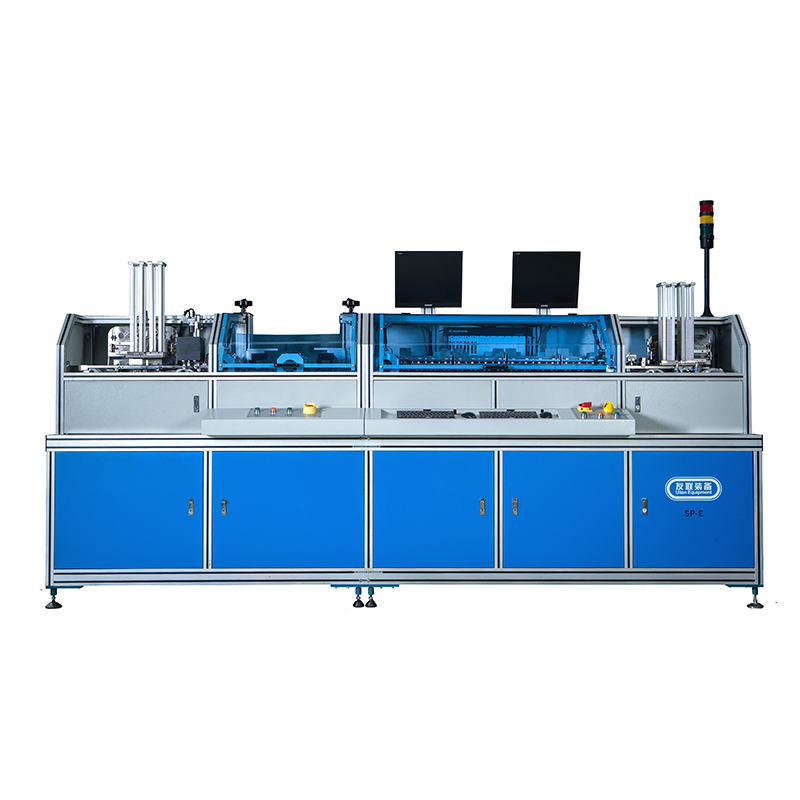

Classic SIM Card Personalization Machine
· Compatible with 1~10 cores, producing one card with multiple cores.
· Online card replacement
· Configure card issuance software system to support secondary development.
· Multiple production modes to improve production efficiency.
· Automatic card box replacement.
· Automatic laser positioning.
- Information
Product Introduction
Introduction of Classic SIM Card Personalization Machine
SP-E is a personalized device for writing data to IC chips. Its design adopts a vacuum automatic replacement dual-entry card magazine mechanism. The card writing module contains 16 sets of drive mechanisms, each of which supports 1 to 10 programming stations (readers and writers), which can read and write data simultaneously. The device is equipped with three sets of double-station flipping mechanisms, which can be independently enabled or disabled through simple software configuration.
During the laser marking stage, the previous station will send the marking data to the laser server. If the card writing process fails, laser printing will not be performed. The device is also equipped with a dual-outlet card magazine, which can automatically replace cards, and combined with a card replenishment turntable and a card ejection mechanism, it can realize real-time online card replenishment function.
Capacity Table
Personalized Time and Capacity Curves:
| Card writing time | 5 | 10 | 13 | 15 | 18 | 20 | 23 | 25 | 30 |
| Yield | 5500 | 4500 | 4000 | 3500 | 3000 | 2500 | 2300 | 2000 | 2000 |
Laser printing time and capacity curve (one card, two cores):
| Laser Printing Time | 0.2 | 0.4 | 0.6 | 0.8 | 1 | 1.1 | 1.2 | 1.4 | 1.6 |
| Yield | 5500 | 5500 | 4000 | 3500 | 3000 | 2500 | 2300 | 2000 | 2000 |
Parameter Table
| Equipment size and specifications | |
| Size | 3600×800×1900 (L×W×H) |
| Weight | 1100KG |
| Power supply |
|
| Gas source |
|
| vacuum | The system comes with a vacuum pump |
