EMV Card Issuing System

· Configure emv certified card issuance software, support secondary development
· Modular configuration, laser, embossing, flat printing can be freely matched
· Meet various card issuance

Information

Product Introduction

Introduction of EMV Card Issuing System

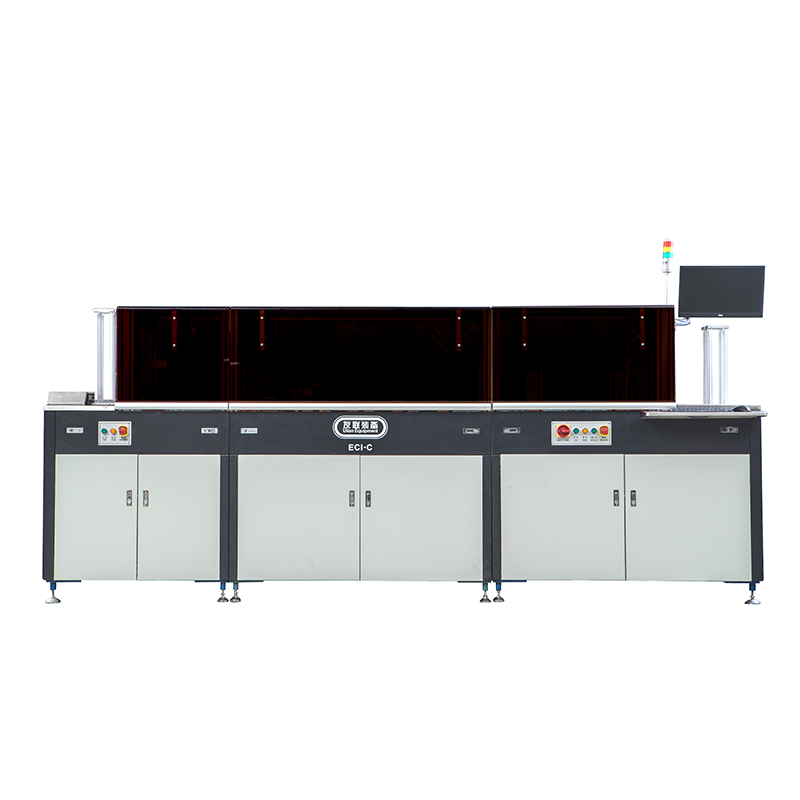

The ECI-C bank card personalization device integrates multiple functions such as magnetic stripe writing, smart card data writing, card plane monochrome and color printing, embossing printing, hot stamping, laser printing, lamination and QA testing. These functions provide comprehensive support for the personalized production of bank cards and can meet the needs of different customers.
The design of the device adopts a modular structure, and users can freely combine and flexibly adjust the configuration according to specific needs. This design not only improves the adaptability of the device, but also enables the device to be customized for different production needs.
In addition, the device is highly efficient and reliable, and can maintain a stable working state during long-term use. The software supports secondary development, and users can customize and develop according to their own needs to further enhance the function and flexibility of the device.

Main Functions of EMV Card Issuing System

Embossing

Max Throughput: 1800 pcs/h
Support serial Printing
The modularization of embossing and can be increased and decreased according to demand

Thermal Printing

Support double side printing,
Single side throughput 1400pcs/h
Double side 800pcs/h

Capacity Table

Personalized Time and Capacity Curves:

Writing time	5	10	15	20	25	30	35	40	45
Yield	2500	2500	2250	1980	1584	1320	1131	990	880

Laser Printing Time and Capacity Curve:

Writing time	25	36	46	55	64	75	92	100	118
Yield	1800	1800	1800	1500	1350	1100	900	800	700

Parameter Table

Dimension and Specifications
Dimension	3600×800×1750 mm(L×W×H) 4600×800×1750 mm(L×W×H)—includes optional Thermal printing 3500×800×1750 mm(L×W×H)-- includes optional Laser printing unit
Weight	900/1200kg
Power	220V(-5%～+10%)，50Hz 5KW(for main machine) The average power is 30% of total power
Compressed Air	Pressure:0.5Mpa Flux:70L/min
Vacuum	Vacuum pump equipped
