DOD Card Issuing System
1. The production capacity is up to 5,500 cards per hour.
2. Equipped with dual sets of OCR visual inspection units and QA inspection units.
3. Equipped with a large-capacity cache mechanism to reduce the rate of rejected cards.
- Information
Product Introduction
Introduction of DOD Card Issuing System

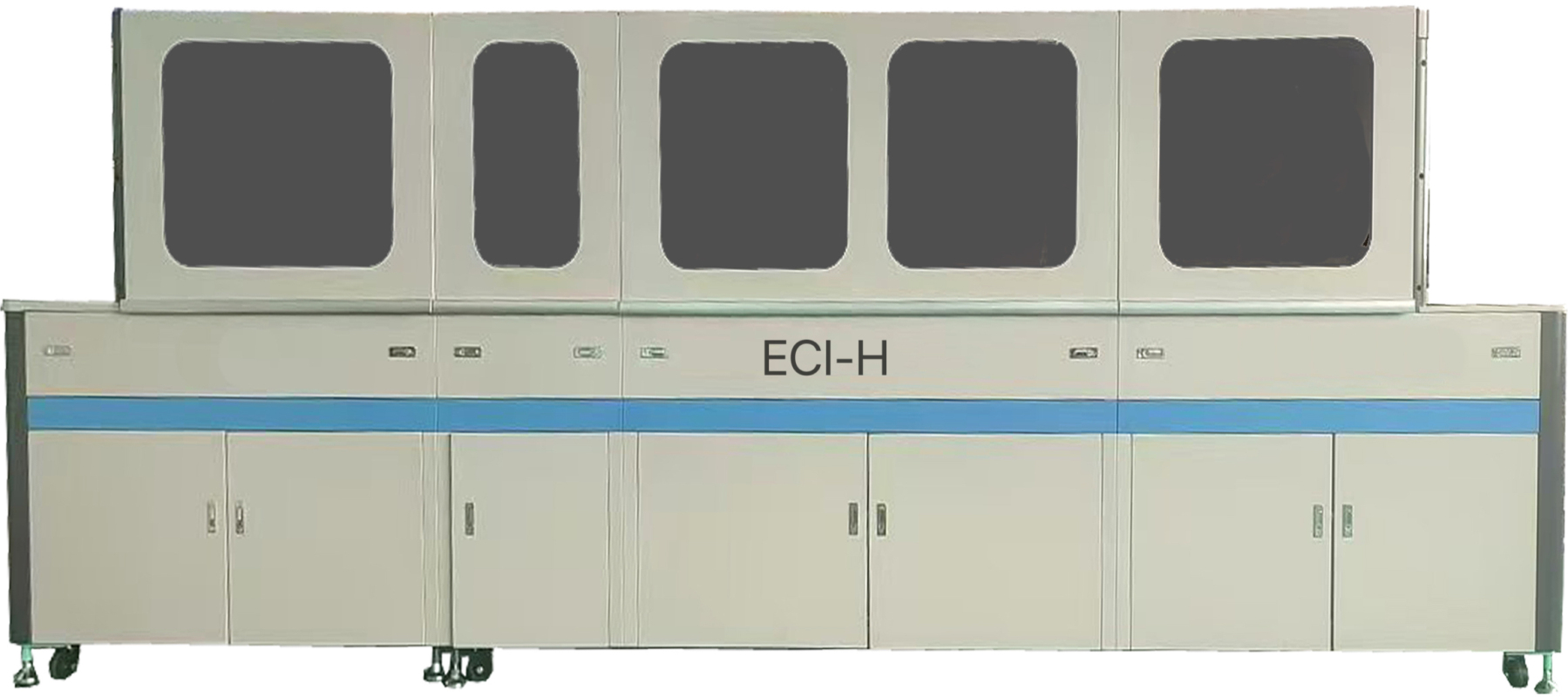

The ECI-H high-speed DOD device integrates smart card data writing, DOD inkjet printing and automatic card receiving and sending functions, which can greatly simplify the production process. By integrating these functions, the equipment reduces the need for manual intervention and improves production efficiency and automation.
The equipment is equipped with dual DOD printing modules and dual buffer modules to ensure that the front and back of the card are printed without intervals, thereby significantly improving the printing speed and overall production efficiency. This design enables the equipment to cope with the needs of mass production and meet the efficiency requirements of modern production lines.
In addition to manual intervention in batch card loading and card collection, the rest of the entire production process, such as card issuance, card writing, printing, flipping, and card collection, are all completed automatically by the machine. The equipment is not only highly reliable and efficient, but also supports flexible secondary development to meet the needs of different customers and markets.
Main Functions of DOD Card Issuing System
Card issuer
Electric card pusher.
Cache blanking.
Automatic bin change
Support metal card issuance
Dod printing mechanism
Resolution: 600DPI horizontally, 600-1200 DPI vertically.
Rotary printing, supports customer-defined angle printing;
Windows supports fonts.
QR code, barcode
White printable fonts larger than 2mm
Automatic ink system cleaning, waste ink recovery, white ink circulation, nozzle maintenance.
OCR visual recognition
Can identify barcodes, QR codes; Arabic numerals; English letters.
Can identify LOGO (only judge whether it is or not)
Recognize characters with a height greater than 2 mm
Input OCR: recognize card information and instruct the system to write personalized information to the card
Capacity Table
Personalized time and capacity curves:
| Card writing time | 18 | 22 | 26 | 30 | 34 | 38 |
| Yield | 5500 | 4900 | 4150 | 3600 | 3170 | 2840 |
Parameter Table
| Equipment size and specifications | |
| Standard size | 7700×750×1750mm (L×W×H) |
| Standard weight | 1800kg |
| Power supply | 220V (-5% to +10%), 50Hz 9.5KW (main device) Average load is 30% of the main device powe |
| Gas source | Pressure: 0.6Mpa Flow rate: 300L/min |
| Ambient humidity | 40～60％ |
| Operating temperature | 23℃ |
